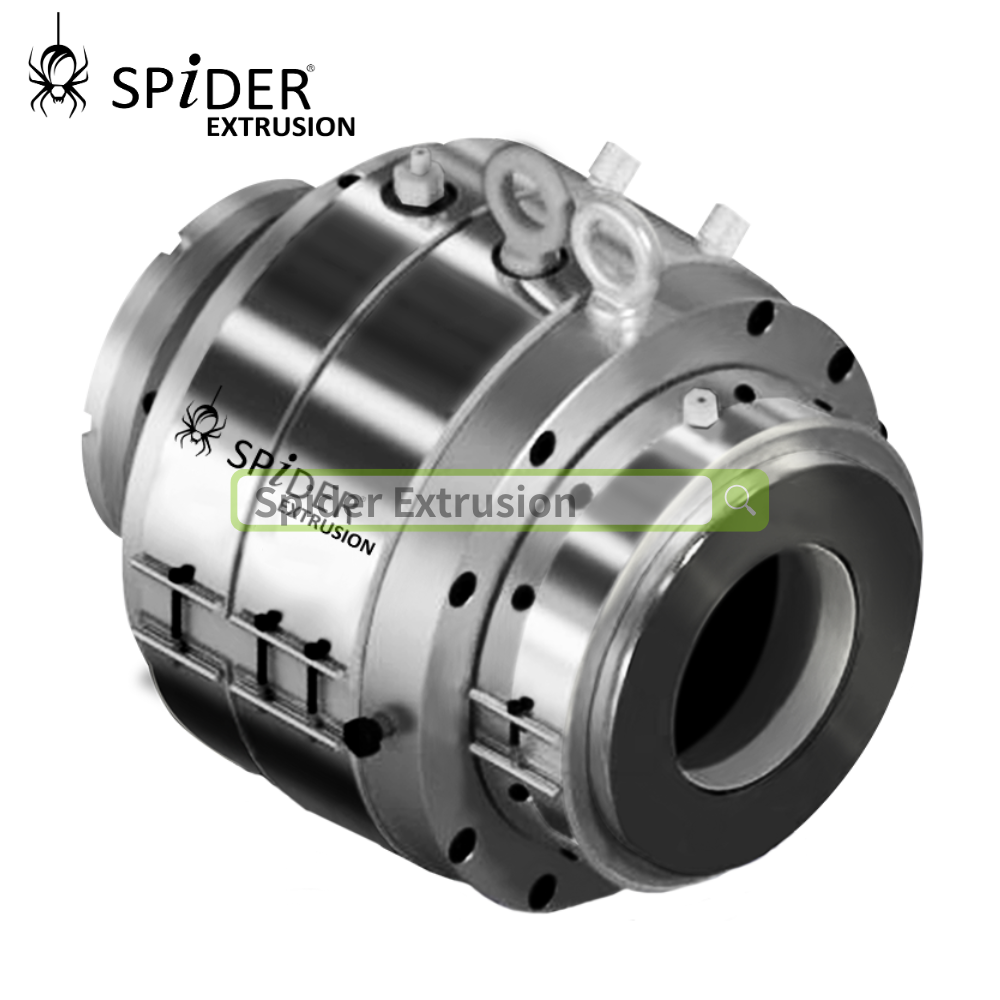

Extruder Crosshead – A Comprehensive Comparison of the Two Main Types
When it comes toextruder crossheads, design is never one-size-fits-all. Some prioritize stability, while others are engineered for flexibility. That’s why understanding the two most common designs–Adjustable Extruder Crosshead and Fixed Center Extruder Crosshead—is critical for engineers, buyers, and procurement teams alike.
The extrusion crosshead design determines how materials flow through the crosshead die and extrusion die head. An adjustable crosshead offers flexibility and precise control, while afixed center crosshead excels in simplicity and consistency. Each choice directly impacts production efficiency, defect rates, and long-term operating costs.
In this article, SPiDER Extrusion provides a professional comparison of these two design types, diving deep into their features, pros and cons, and ideal use cases.
By the end, you’ll have a clear understanding of which extruder crosshead best suits your production line—and why choosing the right one can elevate both your efficiency and product quality.
I recall working with a military cable manufacturer that needed to produce a wide range of cable diameters—from 0.5 mm to 50 mm. With just one set of equipment, the adjustable extruder crossheadenabled them to meet all their production needs.

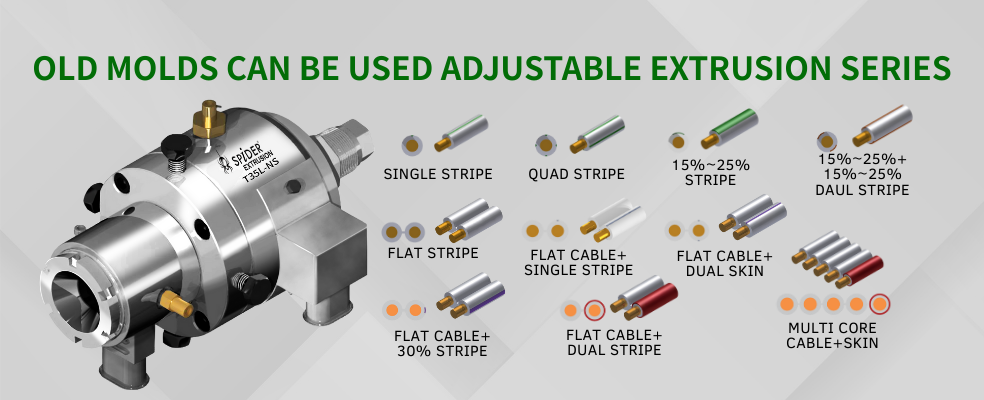

Key Technical Features: 1. Adjustable range typically ±5 mm, covering about 80% of common product sizes 2. Ideal for diverse product specifications 3. Lower initial investment and reduced maintenance costs 4. Requires experienced operators with an estimated learning curve of around 6 months

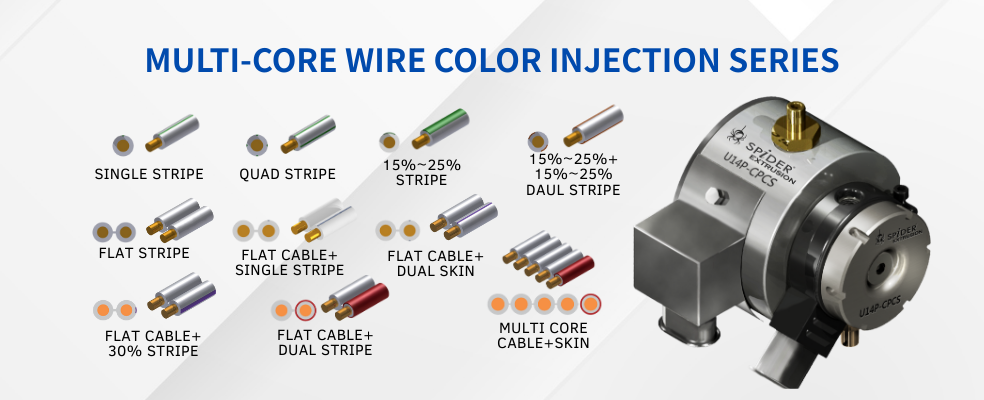

Fixed Center Extruder Crosshead
The Fixed Center Extruder Crosshead is my top recommendation for beginners, primarily because of its “foolproof” reliability.
Across the 300+ production lines I’ve supported, those using fixed center crossheads have shown, on average, a 30% lower defect rate compared to adjustable models.
Key Technical Features: Fixed center conduit position, eliminating operator adjustment errors Setup time of 15–30 minutes, which is 70% faster than adjustable models Ideal for mass production of a single product specification Achieves concentricity precision of ±0.02 mm Higher initial investment, but better long-term ROI than adjustable crossheads Maintenance and cleaning time reduced by 50% compared to conventional designs Designed for 24/7 automated production lines Radial flow uniformity: variation < 2% No skilled operator required; learning curve is approximately one day
224G/448G High-Speed Copper Cable with Lotus Core: Complete Guide & Best Solution
As the demand for AI, big data, and high-performance computing surges, data centers are facing the challenge of 224G/448G ultra-high-speed interconnects.
However, traditional foam insulation structures reveal significant limitations in high-frequency applications, such as excessive insertion loss, poor impedance consistency, and large process fluctuations.
To address these issues, the industry has introduced the innovative Lotus Core Structure.
In this article, SPIDER EXTRUSION will explain the design principles of the Lotus Core Structure, highlight its four major advantages with performance comparisons, and explore its practical application scenarios—helping engineers and procurement professionals identify the most suitable high-speed copper cable solutions.
Background of 224G/448G High-Speed Copper Cable Demand
The rapid adoption of PCIe 7.0, GPU accelerators, and AI models has made data transmission rates exceeding 100 GHz inevitable.
Traditional DAC/AEC copper cables struggle to balance both performance and stability, making more efficient insulation structures the key breakthrough.
What is the 224G/448G High-Speed Copper Cable Lotus Core Structure?
The Lotus Core Structure is an FEP insulation technology that injects inert gases such as CO₂ or N₂ during the manufacturing process to form uniform “lotus root-like” micro air chambers. This structure can:
● Reduce the effective dielectric constant
● Minimize insertion loss
● Improve impedance control accuracy
● Maintain mechanical strength and process stability
The Four Key Advantages of the 224G/448G High-Speed Copper Cable Lotus Core Structure
1.Enhanced Transmission Performance
Compared with foam structures, the Lotus Core Structure reduces insertion loss by about 5% in 27AWG-224G testing, with higher impedance consistency, making it suitable for 224G/448G high-speed applications.
2.Process Consistency and Stability
Foam structures rely on random foaming, which is easily affected by process fluctuations; in contrast, the Lotus Core Structure forms controllable micro air chambers, ensuring product consistency and stability.
3.Optimized Equipment Investment
The Lotus Core Structure can be implemented on existing extrusion production lines with only minor modifications, avoiding large-scale equipment upgrades and reducing capital expenditure.
4.Cost-Effectiveness Analysis
Thanks to reduced material consumption and lower energy usage, the Lotus Core Structure offers a long-term cost advantage in overall cable manufacturing.
Thanks to reduced material consumption and lower energy usage, the Lotus Core Structure offers a long-term cost advantage in overall cable manufacturing.
● The Lotus Core Structure demonstrates lower insertion loss at 53.13 GHz.
● Its impedance stability outperforms that of foam structures.
● Test curves show that the Lotus Core Structure can effectively suppress signal attenuation, making it highly suitable for high-frequency data center applications.
Practical Application Scenarios of 224G/448G High-Speed Copper Cables
224G/448G High-Speed Copper Cables with Lotus Core Structure Are Particularly Suitable For:
● AI training clusters
● High-speed data switches
● PCIe 7.0/8.0 high-speed interconnects
● High-density cabling in large-scale data centers
SPIDER EXTRUSIONhas already assisted multiple wire and cable customers in adopting the Lotus Core Structure, enhancing product performance while reducing manufacturing costs.
Frequently Asked Questions (FAQ)
1. What is the difference between the Lotus Core Structure and the foam structure?
The Lotus Core Structure adopts controllable micro air chambers, delivering more stable performance, while foam structures are affected by the randomness of foaming, resulting in lower quality consistency.
2. Is new equipment required?
No. Most existing extrusion production lines only need minor adjustments.
3. What wire gauges is it suitable for?
Currently, it performs best on 27AWG and 30AWG, with plans to expand to more specifications in the future.
With its breakthroughs in transmission performance, process stability, and cost advantages, the Lotus Core Structure is set to become the best choice for 224G/448G high-speed interconnects.
👉 Want to gain deeper insights into high-speed copper cable design and application solutions? Contact SPIDER EXTRUSION today — delivering high-quality extrusion crossheads, extrusion tooling , and professional services exclusively for wire and cable customers!
Other blog posts
Extruder Crosshead – A Comprehensive Comparison of the Two Main Types
This article provides a detailed analysis of the advantages and disadvantages of extrusion crosshead, along with their ideal application scenarios. After reading, you will have a clear understanding of…
When it comes to wire drawing dies, the right material can make or break your production results. From small stainless-steel wire factories to high-tech medical wire producers, every application demands a different balance of cost, lifespan, and precision.
The three most common choices—tungsten carbide dies, PCD dies, and nano dies—each serve unique purposes. But which one is right for your project?
Tungsten carbide dies excel in versatility and affordability, perfect for manufacturers handling frequent size changes or small-batch production.
PCD drawing dies, on the other hand, shine in high-volume operations, where wear resistance and long tool life dramatically cut replacement costs.
Finally, nano dies deliver ultra-smooth surface finishes, combining hardness and toughness to meet the strict demands of sectors like electronics and healthcare.
In this article, we’ll compare these die materials head-to-head, with real-world insights on their strengths and limitations.
Whether your goal is cost reduction, higher efficiency, or better product quality, we’ll help you pinpoint the die that fits your exact needs. Stay tuned–SPIDER EXTRUSION is here to transform complex decisions into clear strategies.
From my experience at SPIDER EXTRUSION, extending die life is not only a technical challenge but also a strategic decision. The material, production scale, and maintenance plan all interact to determine cost efficiency.
Short-run, cost-sensitive projects: Tungsten Carbide is sufficient. High-volume, continuous runs: PCD ensures consistency and cost savings in the long run. Ultra-fine precision wires: Nano diamond guarantees surface finish and dimensional stability.
Think of die life as an investment curve: the higher the initial cost (PCD or nano diamond), the lower the long-term cost per meter of wire. Without considering this, many factories fall into the trap of “cheap dies, expensive downtime.”
At SPIDER EXTRUSION, we guide clients to balance upfront cost with lifecycle savings—because extending die life is not only about the die itself, but about ensuring efficiency and profitability across the entire production line.
Wire drawing dies failure analysis
At SPIDER EXTRUSION, I have seen that the majority of die failures can be traced to predictable mechanisms. By understanding them, engineers can make smarter decisions when choosing die materials and optimizing processes.
1. Common Failure Modes Wear (Abrasion): Continuous wire contact gradually enlarges the die bore, especially in tungsten carbide (WC) dies. Cracking: PCD dies, though highly wear-resistant, may crack under impact or poor alignment. Thermal Fatigue: Inadequate lubrication causes overheating, leading to micro-cracks. Deformation: At high loads, WC dies may plastically deform, shortening tool life.
2. Material Performance
3. Key Solutions Match die material to production scale: WC for cost-sensitive runs, PCD for large-volume, Nano diamond for precision wires. Use optimized lubricants to reduce thermal fatigue. Schedule re-polishing before severe wear occurs.
Summary: Die failure is not random—it is the result of specific wear or stress mechanisms. By analyzing failures correctly, SPIDER EXTRUSION helps clients extend die life and reduce overall costs.
Comparison of tungsten carbide, PCD and nanowire drawing dies
From my experience at SPIDER EXTRUSION, selecting a die material is not just technical—it’s a strategic investment decision.
PCD: Higher initial cost, but with 10–20× the lifespan, it reduces downtime and improves overall efficiency.
Nano Diamond: Premium investment for ultra-fine wire where consistency and quality are non-negotiable.
Think of it as a cost curve: the more durable the die, the lower the cost per meter of wire. Many factories make the mistake of focusing only on purchase price while ignoring lifecycle savings.
Conclusion: For cost-sensitive runs, WC works. For long runs, PCD wins. For precision, nano diamond is unmatched. At SPIDER EXTRUSION, we help clients calculate not just costs today, but long-term ROI tomorrow.
Other blog posts
SPiDER EXTRUSION Joins HANNOVER MESSE 2025 for the First Time
SPiDER EXTRUSION Representing at HANNOVER MESSE 2025 …

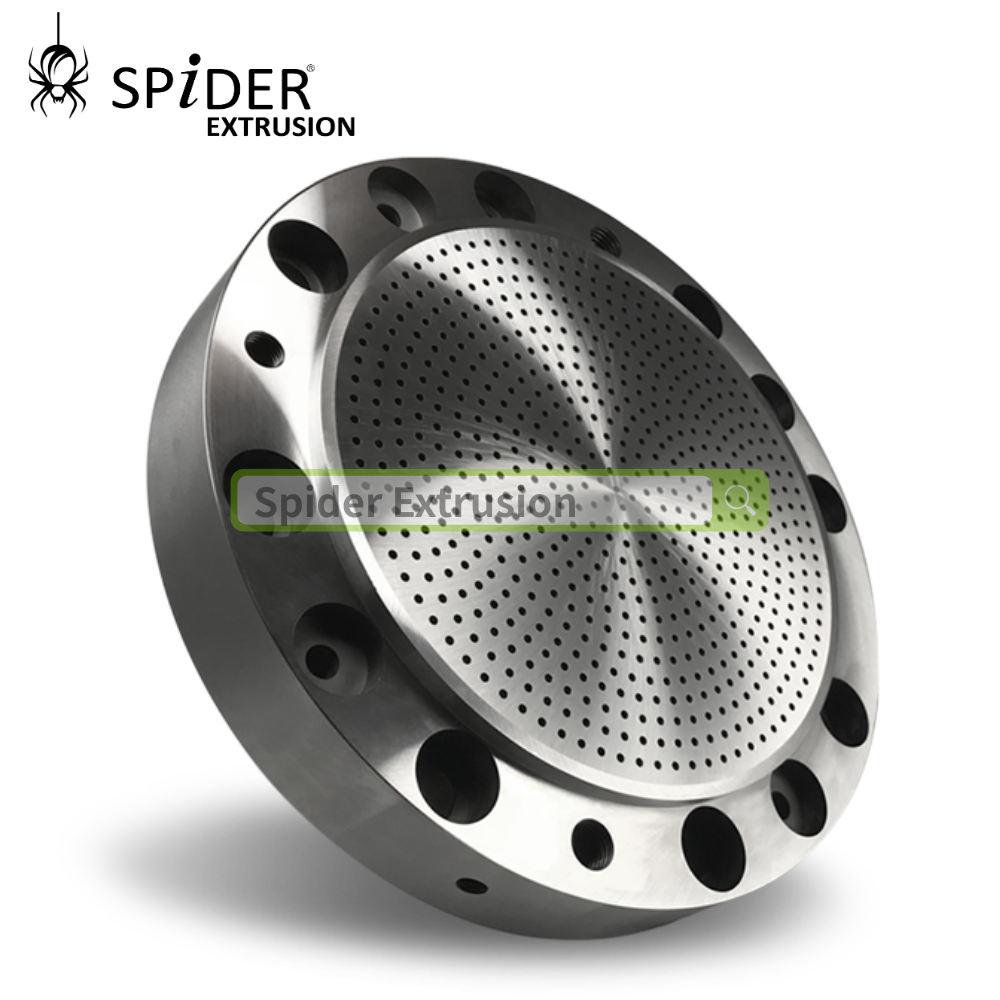

What Is a Breaker Plate? Complete Guide for Extrusion Beginners
If you’re new to extrusion, the breaker plate is one of the most essential components you’ll encounter. Sitting between the screw and the die, it helps transform chaotic melt flow into a stable, uniform stream—improving pressure consistency, reducing turbulence, and protecting downstream tooling. In this guide, we’ll explain how a breaker plate works, what it’s made of, and how the right design can significantly enhance extrusion efficiency and product quality.
In the world of extrusion, one essential yet often overlooked component is the breaker plate. A breaker plate is a thick metal disk with multiple holes, installed between the screw and the die head. Its primary role is to stabilize melt flow and provide mechanical support to the screen pack. Without a reliablebreaker plate, extrusion processes would suffer from inconsistent pressure, poor melt homogeneity, and higher defect rates.

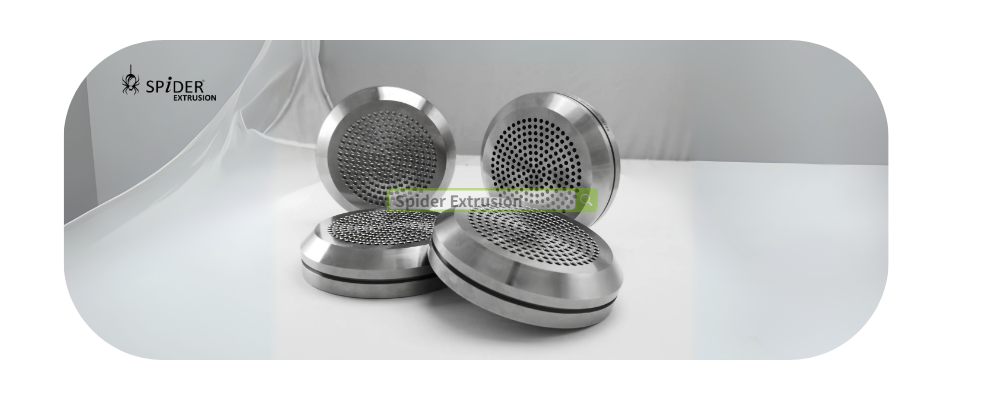

The breaker plate in extrusion works by converting the rotating screw’s spiral flow into a more uniform, linear melt flow before entering the die. This transformation ensures that the polymer is evenly distributed, resulting in higher product quality. Moreover, breaker plates also help reduce turbulence and prevent die damage by maintaining steady pressure.
At SPIDER EXTRUSION, we design advanced extruder breaker platesthat not only improve consistency but also extend the lifespan of screen packs. Whether you are using a breaker plate for extruder in cable coating, tubing, or film extrusion, the right choice can dramatically enhance efficiency and durability.
In modern extrusion lines, the breaker plate extrudersystem is more than a supporting part—it is a critical factor for productivity. By combiningbreaker plateand screen pack design, manufacturers can achieve cleaner melts, reduced downtime, and optimized product performance.
Solving Extrusion Challenges with Breaker Plates: How SPIDER EXTRUSION Elevates Efficiency
In extrusion manufacturing, one of the most persistent challenges lies in achieving melt consistency and reducing defects. This is where thebreaker plate becomes indispensable. A well-designed breaker plate not only stabilizes the melt flow but also improves pressure distribution, resulting in smoother extrusion. For beginners, understanding the function of a breaker plate in extrusion is the first step toward mastering efficiency.
At SPIDER EXTRUSION, our expertise in extruderbreaker plates ensures that customers benefit from maximum productivity. Unlike standard setups, our customized breaker plate extruder systems minimize pressure loss while extending screen pack life. This means fewer disruptions, more consistent product quality, and reduced downtime.

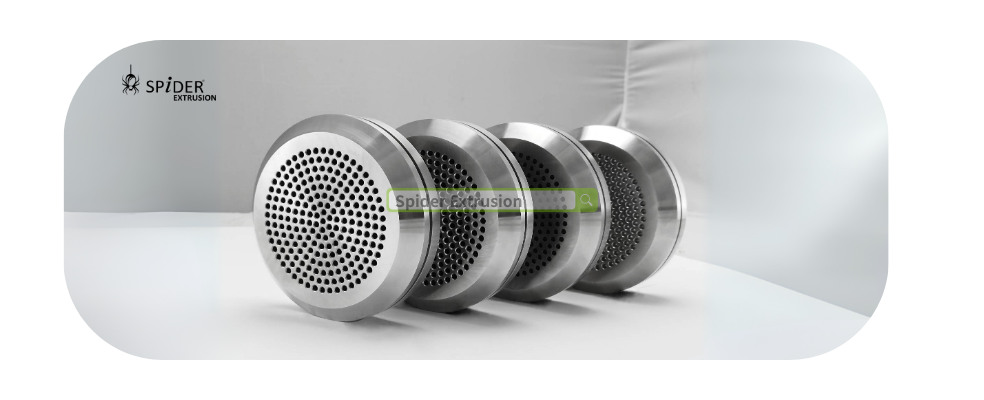

Additionally, the integration of breaker plateand screen pack enables finer filtration, removing contaminants that would otherwise compromise extrusion precision. Whether you are dealing with cable coating, tubing, or film production, the right breaker plate for extrusion can transform production outcomes.
For extrusion professionals seeking to overcome uneven flow, degraded polymers, or frequent maintenance issues, adopting advanced extrusion breaker plates is the key. With SPIDER EXTRUSION’s innovative designs, factories gain not only stability but also scalability, ensuring competitiveness in demanding markets.
Ready to enhance your extrusion line? Discover the SPIDER EXTRUSION advantage today.
Core Benefits of Using Breaker Plates in Extrusion
Core Benefits of Using Breaker Plates in Extrusion: Ensuring Quality and Consistency
In extrusion manufacturing, thebreaker plateis not just a supporting part—it is the backbone of quality control. Installed between the screw and die head, a breaker plate transforms irregular melt flow into a consistent stream, reducing turbulence and enhancing product quality. Without a properly designedbreaker plate, extrusion lines may suffer from uneven thickness, weak mechanical properties, and frequent defects.
The breaker platein extrusion offers three core benefits:
Melt Homogenization – By redistributing polymer flow,breaker platesensure every particle reaches the die uniformly. Pressure Stability – A well-calibratedbreaker plate maintains steady back pressure, preventing surges that could damage dies. Filtration Support – With a screen pack, the breaker plate filters impurities, leading to cleaner, more reliable output.
At SPIDER EXTRUSION, our custom extruder breaker plates are engineered for diverse applications, from cable coating to film extrusion. By combiningbreaker plateand screen pack design,we guarantee extended filtration life and reduced downtime. The result ? Consistent quality and cost savings.
Whether you’re upgrading abreaker plate for extruder or investing in a new breaker plate extruder system, the right solution improves both efficiency and profitability. SPIDER EXTRUSION’s innovations in extrusion breaker plates continue to empower factories with stable production, superior precision, and long-term competitiveness.
When it comes to extrusion, efficiency depends on more than just machines and materials—thebreaker plate plays a decisive role. By converting spiral melt flow into a straight path, thebreaker plate allows extrusion lines to run faster, smoother, and with less waste.
The impact of thebreaker plate extrusion process includes:
Higher Productivity – A well-designed breaker plate for extrusion keeps melt flow stable, enabling higher throughput.
Energy Efficiency – Consistent back pressure reduces strain on the extruder, cutting energy use.
At SPIDER EXTRUSION, our extrusion breaker plates are engineered for maximum durability and performance. By pairing each breaker plate with the right screen pack, we help manufacturers cut maintenance costs while boosting production.
Choosing the Right Breaker Plate for Your Extruder
Choosing the Right Breaker Plate for Maximum Extrusion Efficiency
The breaker plate is more than just a filter support—it is the key to unlocking extrusion efficiency. By converting spiral melt flow into a streamlined path, thebreaker plateensures stable pressure, reduced turbulence, and enhanced product precision.
Key factors to consider when selecting abreaker platein extrusion include:
Hole Design – The number, size, and arrangement of holes determine how effectively melt is redistributed. Material Strength – A durablebreaker plate resists high pressure and prevents deformation under heavy loads. Compatibility – The plate must align perfectly with your screen pack and extrusion setup.
At SPIDER EXTRUSION, we specialize in designing extruder breaker plates tailored for different industries, from cable coating to film production. SPIDER EXTRUSIONbreaker plate and screen pack solutions not only enhance filtration but also reduce downtime by extending screen life.
Whether you are upgrading an older system or installing a newbreaker plate extruder, the right choice will directly impact performance, cost-efficiency, and product consistency.
Breaker Plate Maintenance and Best Practices: Keeping Extrusion Lines Reliable
The breaker plate is a critical part of every extrusion system, yet it is often neglected in routine maintenance. Without proper care, a breaker plate can clog, wear out, or lose efficiency—leading to inconsistent melt flow and costly downtime. To keep production stable, regular breaker plate maintenance is essential.
Best practices for maintaining abreaker platein extrusion include:
Scheduled Cleaning – Residues and carbon buildup should be removed to prevent flow obstruction. Monitoring Pressure Sudden changes – Sudden changes may indicate clogging in the breaker plate for extrusion. Proper Storage – Spare extruder breaker plates should be stored in dry, controlled environments to prevent corrosion.
At SPIDER EXTRUSION, our breaker plateand screen pack solutions are designed for durability and easy maintenance. By using high-grade materials, our breaker plate for extruder resists high pressure and extends operational life.
Regular care ensures your breaker plate extruder runs efficiently, lowering maintenance costs and improving consistency. Following these practices helps avoid downtime and maximizes ROI.
What Are Extrusion Tools? Complete Guide for Beginners in 2025
Understanding extrusion dies is the first step to mastering the art of precise and efficient production. Whether you’re new to extrusion dies design, exploring plastic extrusion dies, or comparing different types of extrusion dies, the right knowledge can transform your results.
In this complete 2025 guide, SPiDER EXTRUSION walks you through essential extrusion tooling, from plastic extrusion tooling to specialized extrusion tips, sheet extrusion dies, and pipe extrusion dies. Discover how the latest extrusion toolingand technology can improve quality, boost efficiency, and cut costs.
Keep reading to gain practical insights, expert tips, and actionable steps that will help you choose and optimize your extrusion tools for long-term success.
Extrusion Tools: Complete Guide for Beginners in 2025
Extrusion tools are essential components in modern manufacturing, designed to shape raw materials into continuous profiles with precision and efficiency.
In industries such as plastics, and rubber, these tools form the backbone of production lines, ensuring consistent quality and high output. For beginners in 2025, understanding extrusion tools is the first step toward mastering production efficiency.
At SPiDER EXTRUSION, we specialize in designing and producing high-performance extrusion tooling that caters to various applications, from plastic extrusion dies to specialized pipe extrusion dies.
Introduction to Extrusion Tools

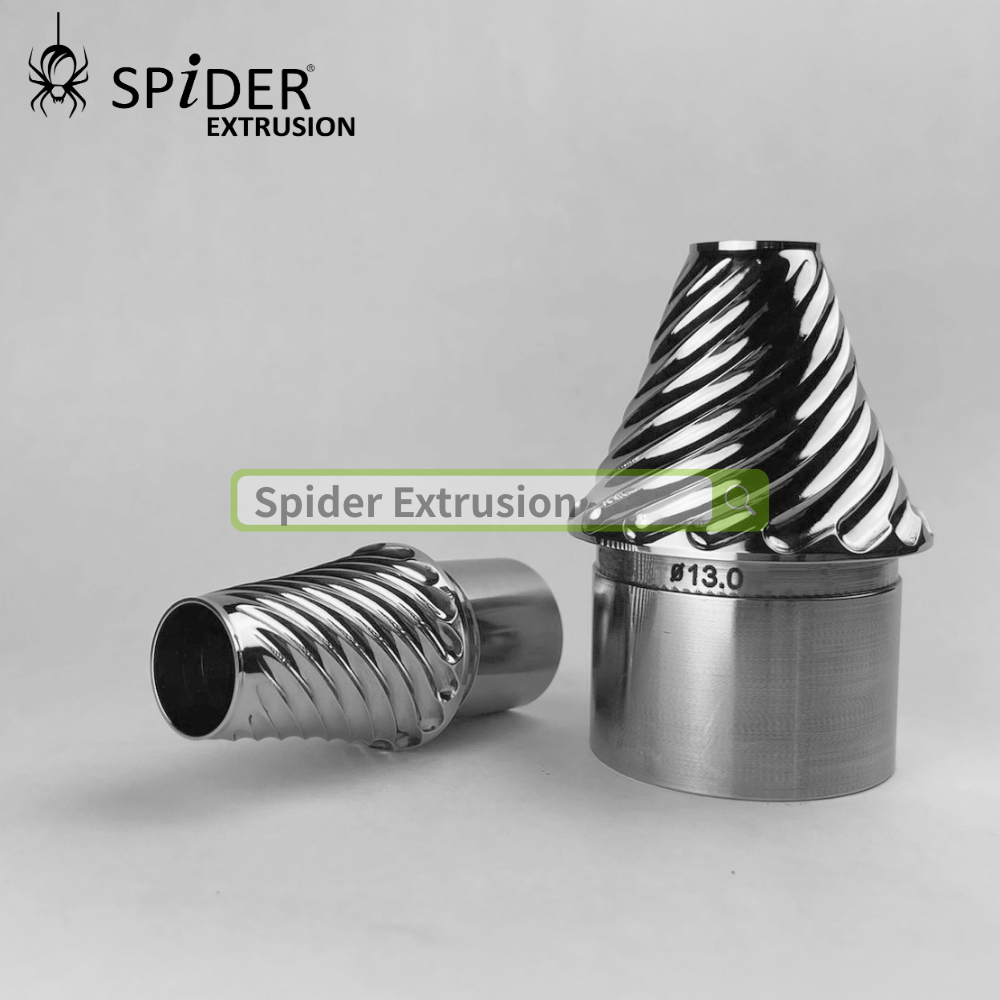

Extrusion tools include a combination of extrusion dies, extrusion crosshead, and other specialized components that work together to transform heated raw material into precise shapes.
In plastic extrusion tooling, for example, thermoplastic materials are melted and pushed through extrusion dies design to create pipes, sheets, and custom profiles.
High-quality extrusion tooling is not only about shaping—it also determines surface smoothness, dimensional accuracy, and material flow stability.
Key Components of Extrusion Tools
An extrusion toolset generally consists of:Extrusion tools – Define the shape and dimensions of the final product.Extrusion crosshead – Control the flow of material before it enters the extrusion crosshead.Breaker Plates – Filter and stabilize melt flow.Flanges – Ensure secure connections between components. For example, sheet extrusion dies require a wide, flat opening, while pipe extrusion dies have a circular profile. The compatibility of these components impacts both quality and efficiency.
There are several types of extrusion dies, each suited for specific applications:Pipe Extrusion Dies – For manufacturing water, gas, and industrial piping.Sheet Extrusion Dies – For creating flat plastic sheets and films.Sheet Extrusion Dies – For custom shapes in construction and automotive industries.Co-Extrusion Dies – For combining multiple materials in one product. SPiDER EXTRUSION expertise covers a wide range of plastic extrusion tooling to meet diverse market needs.
Extrusion Tooling and Technology in 2025
SPiDER EXTRUSION integrates CNC precision machining and advanced polishing techniques to produce high-quality plastic extrusion dies that meet global standards.
These innovations reduce downtime, improve accuracy, and extend tool lifespan.
Choosing the Right Extrusion Tools for Your Production
Selecting the right Extrusion Tooling depends on:Material Type – Different plastics require different plastic extrusion dies.Product Application – Pipes, sheets, and custom profiles demand specific designs.Production Volume – High-speed production requires durableextrusion tooling.Budget and Maintenance – Investing in premium tools reduces long-term costs. SPiDER EXTRUSION provides consultation services to recommend extrusion tips and extrusion dies that match your production goals.
Extrusion Tools Maintenance and Best Practices
Proper maintenance extends the life of your Extrusion Toolingand ensures consistent product quality. Best practices include:Regular cleaning of Extrusion Tooling to prevent buildup.Inspection for wear on extrusion crosshead and breaker plates.Storing extrusion Tooling in controlled environments to avoid corrosion. By following these guidelines, pipe extrusion dies and sheet extrusion dies can remain in top condition for years.
Contact SPiDER EXTRUSION
In 2025, mastering extrusion tools is essential for staying competitive in the manufacturing industry. From selecting the right types of extrusion dies to implementing advanced extrusion tooling and technology, every decision impacts efficiency, quality, and profitability.
SPiDER EXTRUSION is committed to delivering precision-engineered plastic extrusion tooling tailored to your needs. 📩 ContactSPiDER EXTRUSION o learn how our extrusion dies and extrusion tips can enhance your production line’s performance.
SPiDER EXTRUSION Joins HANNOVER MESSE 2025 for the First Time
SPiDER EXTRUSION Representing at HANNOVER MESSE 2025 in Germany marked an exciting milestone for our team !
This prestigious industrial trade fair was the perfect stage to showcase our extrusion crossheads, extrusion heads, precision extrusion tools, and advanced extrusion toolingto industry professionals from around the world — particularly those in wire cable plastic coating extrusion.
From innovative designs to customized plastic extrusion molding solutions, we demonstrated how SPiDER EXTRUSION’s technology delivers precision, stability, and efficiency to meet the evolving demands of modern manufacturing.
A Step Forward for SPiDER EXTRUSION: Joining HANNOVER MESSE 2025
This is Our first time representing SPiDER EXTRUSIONat the HANNOVER MESSE in Germany, one of the world’s most influential industrial trade fairs. It was an incredible opportunity to introduce our extrusion crossheads, precision extrusion tools, and innovative extrusion dies solutions to professionals from all over the world, especially those working with wire cable plastic coating extrusion systems.
SPiDER EXTRUSION Show Highlights and Memorable Moments
SPiDER EXTRUSION hadn’t announced this trip beforehand, but the connections and conversations at HANNOVER MESSE were too valuable not to share.
During the exhibition, SPiDER EXTRUSION engaged with potential partners from Europe, the Middle East, and Eastern Europe. Many visitors expressed strong interest in our wire cable extrusion crossheadtechnology, acknowledging its precision and stability in plastic coating extrusion applications.
One visitor even remarked, “This design looks better than what we’re currently using!” — a comment that reaffirmed our dedication to delivering cutting-edge extrusion tools andextrusion diesfor the global market.
Another memorable moment came during a technical discussion on extrusion stability. While sketching a concept by hand, a visitor quickly took a photo — a spontaneous and collaborative exchange that perfectly captured the spirit of knowledge sharing.
What the Market is Telling Us
From these interactions, we gained valuable market insights ： Global demand for flexible, efficient, and precise extrusion crosshead solutions is on the rise.Customers now seek complete, results-oriented solutions — not just machine specifications.Language, culture, and time zones are not barriers; they are opportunities for deeper collaboration.
After the Exhibition – Forging Lasting Partnerships
The exhibition may have ended, but the relationships we built are just beginning. 📸 Here’s a glimpse of our booth — featuring SPiDER EXTRUSION’s extrusion heads, extrusion dies, and me passionately explaining our products to visitors. If you’re curious about our extrusion tools or want to explore how SPiDER EXTRUSION can support your next project, feel free to reach out to our team.
We are grateful to our customers, colleagues, and families whose support empowers us to deliver high-quality extrusion tools to the global market. Most importantly, we appreciate the dedication and professionalism of the SPiDER EXTRUSION team — the driving force behind this milestone achievement.
🛫 This HANNOVER MESSE experience marks just the first step in our global exhibition journey. At our next destination, we will be better prepared, go further, and present even more advanced extrusion crossheadtechnology and precision extrusion tools.
Whether you need customized solutions for wire and cable plastic coating extrusion,pipe extrusion, or sheet extrusion, or you’re exploring ways to enhance production efficiency, SPiDER EXTRUSION is here to help.
📩 Contact us today — Let’s explore how we can work together and make SPiDER EXTRUSION your trusted partner in plastic extrusion molding.
PVC vs XLPE Cable Insulation: Pros and Cons Explained
PVC vs XLPE Cable: Which Insulation Material Is Right for You?
In the cable manufacturing industry, one question never seems to go away: PVC vs XLPE cable— which insulation material is the better choice? Buyers, engineers, and procurement specialists all face the same dilemma.
PVC is known for its low cost and versatility, while XLPE (short for cross-linked polyethylene) is praised for durability and high performance. But when it comes to selecting the right solution for a project, the answer is rarely simple.
PVC cable properties make it ideal for indoor and low-voltage applications, offering a balance of flexibility and affordability.
However, its PVC cable temperature rating typically limits performance in demanding environments. On the other hand, XLPE cable advantages include better heat resistance, longer service life, and suitability as a high voltage cable material. The challenge? XLPE vs PVC insulation comes with a trade-off: higher upfront costs versus long-term reliability.
In this guide, we’ll provide a structured comparison of PVC vs XLPE cable.
You’ll discover the pros, cons, and cost differences (XLPE vs PVC cost), plus learn how material selection impacts safety, efficiency, and long-term value.
By the end, you’ll know how to choose with confidence—and why SPIDER EXTRUSION’s expertise makes that choice easier. Keep reading to unlock insights that go far beyond textbook definitions.

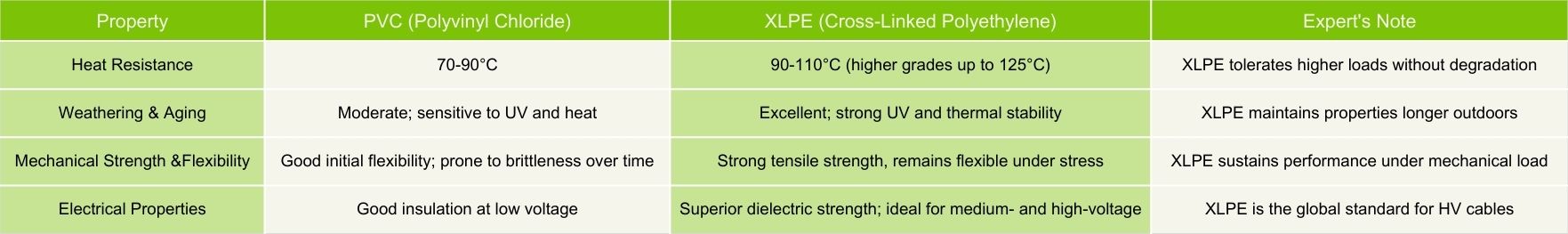

When choosing the right cable for a project, understanding the core properties of the insulation material is paramount. PVC (Polyvinyl Chloride) and XLPE (cross-linked polyethylene) are two of the most widely used options, each with distinct characteristics that dictate their suitability for different applications.
PVC has long been the industry standard due to its excellent cost-effectiveness and processability. Its inherent flexibility makes it easy to install, and its good electrical insulation properties are sufficient for many low- and medium-voltage applications. However, a key limitation of PVC cable properties is their thermal and chemical resistance.
PVC cable temperature rating typically maxes out at 70°C to 90°C. Exceeding this limit can lead to material degradation, brittleness, and a loss of insulation integrity over time. While its flame retardant properties are decent, it can release corrosive fumes when it burns, which is a major concern in enclosed spaces.
In contrast, XLPE cable advantages stem from its superior thermal stability. Through a process of cross-linking, the polyethylene’s molecular structure is permanently altered, forming a robust network that can withstand much higher temperatures.
XLPE insulation can operate continuously at 90°C and handle short-circuit temperatures up to 120°C.
This makes it a preferred choice for high-voltage and high-current applications where heat generation is a significant factor.
Furthermore, cross-linked polyethylene exhibits excellent resistance to moisture, chemicals, and UV radiation, ensuring its durability in harsh outdoor or underground environments.
This superior resilience, while contributing to a higher XLPE vs PVC cost, often results in a lower total cost of ownership due to reduced maintenance and replacement needs.
PVC vs. XLPE Cables: Performance Comparison
When comparing PVC and XLPE for cable applications, performance parameters must be examined systematically. At SPIDER EXTRUSION, we always evaluate four critical aspects: thermal resistance, weathering and aging, mechanical strength, and electrical performance.
From a technical standpoint, PVC works well in controlled indoor environments where cost is the priority. However, in outdoor or high-voltage systems, XLPE outperforms in every major category.
Engineers and buyers often face the dilemma of short-term savings versus long-term reliability.
Our recommendation at SPIDER EXTRUSION is simple: assess not only material price but the lifecycle cost.
Over decades of cable extrusion experience, we have seen that the right material choice directly translates into fewer failures, lower maintenance, and overall better system efficiency.
PVC vs. XLPE Cables: Cost and Lifespan

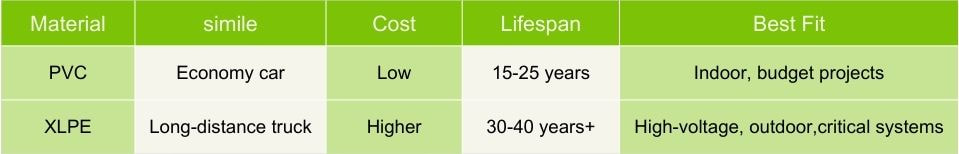

When I explain cost and service life to non-specialists, I often use simple analogies. Think of PVC as an economy car—cheap to buy, easy to maintain, and good for short trips. But if you drive it hard in tough conditions, it wears out faster. Its service life is shorter, which means more frequent replacements.
Now think of XLPE as a long-distance truck. It costs more upfront, but it’s built for endurance. It can handle heavy loads, high heat, and long journeys. Over time, the higher investment pays off, because the truck lasts much longer and doesn’t break down as often.
The same applies to cables:
This is why most high-voltage networks worldwide rely on XLPE. When the stakes are high, you don’t gamble on short-term savings—you invest in reliability.
At SPIDER EXTRUSION, I always emphasize this principle: the right cable is not just about price, it’s about the peace of mind that comes from knowing your system will perform for decades.
PVC vs. XLPE Cables: Summary
After decades of working with cable extrusion at SPIDER EXTRUSION, I’ve learned that the question “PVC or XLPE?” rarely has a simple answer. Both materials serve essential roles, and each comes with its own strengths and trade-offs.
PVC is affordable, versatile, and easy to process. It shines in residential wiring, temporary power lines, and projects where budgets are tight. But its limitations—heat resistance up to about 90°C and moderate weathering performance—make it less reliable in demanding outdoor or high-voltage applications.
XLPE, on the other hand, is engineered for durability. With its cross-linked structure, it withstands 90–110°C (sometimes higher), resists UV radiation, and delivers superior dielectric performance. This is why XLPE dominates medium- and high-voltage networks, where failures would cost millions. The trade-off, of course, is higher initial investment.
So how do you decide? My expert view is this: there is no absolute winner—only the right fit. If your project requires short-term cost efficiency, PVC makes sense. If it demands decades of reliability, XLPE is the smarter choice.
At SPIDER EXTRUSION, I always guide clients to evaluate not just material cost, but lifecycle cost and maintenance strategy. A cable is not just a product—it’s a long-term investment in safety, reliability, and performance. And that investment only pays off when the right material is chosen for the right application.
Other blog posts
SPiDER EXTRUSION Joins HANNOVER MESSE 2025 for the First Time
SPiDER EXTRUSION Representing at HANNOVER MESSE 2025 …
When you think of modern infrastructure, healthcare, and consumer goods, one hidden hero stands behind them all–tube extrusion. From delivering clean water throughpipe extrusion systems to creating life-saving catheters with medical tube extrusion, this process powers industries we rely on every day.
Whether it’s sturdy pipelines made with hdpe pipe extrusion, flexible devices produced by silicone tube extrusion, or durable hoses from rubber tube extrusion, tube extrusion is everywhere, yet often overlooked.
In this article, we’ll explore why tube extrusion matters and how advanced equipment, like the plastic pipe extrusion machine or pvc pipe extrusion machine, keeps shaping the future of manufacturing.
We’ll also look at innovations in the pipe extrusion line, the precision of the tube extrusion tool, and even how the pipe line calculation formula helps engineers achieve accuracy and efficiency.
Keep reading—you’re about to uncover how this foundational process not only creates products but also drives innovation, efficiency, and sustainability across industries worldwide.
The foundation of a high-quality finished product in tube extrusion is the careful preparation of raw materials. Whether you’re producing a large hdpe pipe extrusionor a delicate medicaltube extrusion, the process begins long before the material enters the machine. This step is critical for ensuring consistent quality, preventing defects, and optimizing the overall production line.
The first step is selecting the correct polymer. The choice of material—be it PVC, HDPE, silicone, or another plastic—dictates the end product’s properties.
For example, silicone tube extrusion requires materials with specific flexibility and biocompatibility, while pvc pipe extrusion machine operations demand a rigid and durable polymer.
Once the material is chosen, proper drying is essential. Most polymers are hygroscopic, meaning they absorb moisture from the air.
This moisture, if not removed, can turn into steam during the extrusion process, leading to cosmetic defects like bubbles and streaks, and more critically, compromising the structural integrity of the final product.
For this reason, materials used in plastic pipe extrusion and similar processes are typically dried in hoppers or ovens to a specific moisture level.
Next, the raw material is often mixed with various additives. These additives can include colorants, UV stabilizers, flame retardants, and lubricants. The precise measurement and thorough mixing of these components are vital. In a process like rubber tube extrusion, for instance, the addition of specific vulcanizing agents and fillers is crucial for achieving the desired physical properties. Using a modern plastic pipe extrusion machine with an automated mixing system ensures consistency and accuracy.
Finally, the prepared material is fed into the extruder. This final step in the preparation process is a simple but important one. The way the material is fed—whether by a hopper with a specific feed rate or another mechanism—affects the flow and pressure inside the barrel. A stable feed rate is crucial for maintaining a consistent output in any pipe extrusion line.
Melting and Feeding
The tube extrusion process is a cornerstone of modern manufacturing, used to create a vast array of products from simple pipes to intricate medical devices. However, the quality of the final product hinges on a crucial, often overlooked first step: raw material preparation. This stage is vital for ensuring consistency, efficiency, and the desired properties of the extruded material.
The raw material, typically in the form of pellets, powder, or granules, must undergo several preparatory steps. The first is drying. Many polymers, especially hygroscopic ones like PVC and nylon, absorb moisture from the air. If not properly dried, this moisture can turn into steam during the plastic pipe extrusion machine process, leading to defects such as voids, bubbles, or surface blemishes. A thorough drying process, often done in a desiccant dryer, is non-negotiable for producing high-quality output.
Another critical step is blending. For specialized applications like medical tube extrusion or hdpe pipe extrusion, different additives are often mixed with the base polymer. These can include colorants, UV stabilizers, flame retardants, or plasticizers. Precise blending ensures that these additives are uniformly distributed throughout the material, which is essential for achieving consistent product properties, whether it’s a flexible silicone tube extrusion or a rigid rubber tube extrusion.
Furthermore, some applications require the use of a tube extrusion tool that can handle a specific material formulation. The preparation phase must account for the specific material’s characteristics to ensure a smooth pipe extrusion process.
This includes considerations like melt flow index and thermal stability. In a sophisticated pipe extrusion line, proper material preparation directly impacts the overall productivity and the quality of the final product, preventing issues that might require a complex pipe line calculation formula to troubleshoot later.
Shaping Through Extrusion Dies
After the polymer has been perfectly melted and homogenized, the next critical step in tube extrusion is shaping it into the desired form. This is the domain of the extrusion die, a precision tubeextrusion toolthat defines the final dimensions and profile of the product. Extrusion tool is where the art and science of plastic pipe extrusion truly come together.
At SPIDER EXTRUSION, we understand that the die is the most important componen Pipe extrusion in the shaping process. It receives the molten polymer from the plastic pipe extrusion machine and forces it through a precisely engineered opening. For products like hdpe pipe extrusion and pvcpipe extrusion machine applications, the die ensures the consistent circular shape and uniform wall thickness. The design of the die directly impacts product quality, preventing issues like uneven flow, melt fracture, or surface imperfections. A well-designed extrusion tooling ensures a smooth and continuouspipe extrusion process, which is essential for high-volume production on a modern pipe extrusion line.
The complexity of the die varies greatly with the application. For simplepipe extrusion, a basic die might suffice. However, for intricate products like those used in medical tube extrusion, the die is a masterpiece of engineering. It must handle multi-lumen designs and extremely tight tolerances, ensuring the polymer flows smoothly without degradation. Similarly, for silicone tube extrusion and rubber tube extrusion, the die must be specifically designed to handle the unique rheological properties of these materials, which are often highly viscous.
Ultimately, extrusion tooling is the final gateway before the product enters the cooling and calibration stages. Its precision is paramount. A flawless extrusion tooling design, honed by experience and expertise, ensures that every single piece produced is identical. This precision is what allows manufacturers to bypass complex diagnostics or the need for a convoluted pipe line calculation formula to fix defects. At SPIDER EXTRUSION, we believe the perfect die is the key to perfect results.
SPIDER EXTRUSION Supplementary Note: The Draw-Down Ratio (DDR) during tubing extrusion affects the uniformity of tube wall thickness and diameter. The Draw-Down Ratio (DDR) is a crucial parameter in the plastic extrusion process, describing the degree to which the extruded material is stretched after exiting the die. This factor influences the dimensions, mechanical properties, and surface quality of the final product.
Cooling and Sizing
After the molten polymer exits the die, the next critical phase in the tube extrusion process begins: cooling and sizing. This is the stage where the soft, malleable material solidifies into its final shape, and any imprecision here can compromise the entire production run. SPIDER EXTRUSION understands that this is where a product’s true quality is locked in.
The cooling process typically involves a water bath or spray tank. The extruded product, still hot and soft, is pulled through this cooling medium. The speed of the cooling and the temperature of the water are precisely controlled. Too-rapid cooling can cause internal stress, leading to a brittle product, while too-slow cooling can deform the tube. For high-density materials like those used in hdpepipe extrusion, the cooling process must be gradual to prevent warping. In contrast, applications like medical tube extrusion require very precise and consistent cooling to maintain tight tolerances.
Simultaneously, sizing is performed. This is the act of giving the tube or pipe its exact final dimensions. Sizing can be done using a vacuum sizing tank, which applies a controlled vacuum to pull the soft material against a sizing sleeve or plate. This method is common for plasticpipe extrusion and ensures a perfectly round shape and a consistent wall thickness.
This crucial stage ensures the success of the entirepipe extrusion operation. It’s a testament to the precision of the plasticpipe extrusion machine and the tube extrusion tool. A well-calibrated pipe extrusion line, overseen by experts at SPIDER EXTRUSION, ensures that the final product meets all specifications, eliminating the need to resort to a complex pipe line calculation formula Draw-Down Ratio (DDR) to troubleshoot dimensional flaws.
Applications of Tube Extrusion in Different Industries
Look around, and you’ll find the products of tube extrusion everywhere. This manufacturing process, which turns raw polymer into a continuous, hollow profile, is a foundational technology that serves a surprising number of industries. AtSPIDER EXTRUSION, we’ve helped countless clients leverage this process for both everyday goods and highly specialized products.
One of the most critical applications is medical tube extrusion. The demand for precision in this sector is unmatched. From catheters to blood collection tubes, these products must have flawless surfaces and exact dimensions to ensure patient safety and device performance. Our advanced plastic pipe extrusionmachines are built to handle the specialized materials and tight tolerances required, making us a trusted partner in this life-critical industry.
On the other hand, pipe extrusion for infrastructure is all about durability and scale. HDPE pipe extrusionis a perfect example, creating long-lasting pipes for water distribution and gas lines. These pipes resist corrosion and are lighter than metal alternatives, making them a more efficient choice for a large-scale pipe extrusion line. A pvc pipe extrusion machine also plays a huge role here, producing the pipes used for residential plumbing and drainage systems worldwide.
The applications don’t stop there. Tube extrusion technology is also behind the hoses in your car and the food-grade tubing in your kitchen appliances. Silicone tube extrusionand rubbertube extrusionare essential for these uses, providing flexibility, heat resistance, and chemical stability. The right tube extrusion tool is key to achieving the specific properties needed for each application. With our expertise,SPIDER EXTRUSION ensures that the entire plastic pipe extrusionprocess, from start to finish, is optimized for quality and efficiency, demonstrating that a deep understanding of the process is more valuable than any a pipe line calculation formula.
Other blog posts
What Is a Breaker Plate? Complete Guide for Extrusion Beginners
Breaker plate is a crucial component in the …
SPiDER EXTRUSION Joins HANNOVER MESSE 2025
SPiDER EXTRUSION Representing at HANNOVER MESSE 2025 in Germany ..
This complete guide also explores sheet extrusion die, pipe extrusion die, and profile extrusion die. Learn the difference and upgrade your extrusion knowledge today!
Why People Confuse Extrusion Mold and Extrusion Die
If you’ve ever stepped into the world of plastic manufacturing, you’ve probably heard people use the terms Extrusion Mold and Extrusion Die as if they mean the same thing. But here’s the catch—they don’t. This confusion is common, even among professionals, because both tools sit at the heart of the extrusion plastic process and are essential in shaping materials into their final forms. An Extrusion Mold serves one role, while theExtrusion Diehas a different yet equally critical function.
In this article, we’ll clear the fog by breaking down the differences between these two crucial pieces of extrusion tooling. We’ll also dive into how an extrusion die head directs the flow of molten material, why extrusion die design determines product consistency, and where specialized tools like the sheet extrusion die, pipe extrusion die, rubber extrusion die, and shapeextrusion die come into play. You’ll even learn how advanced techniques like extrusion die polishing can boost efficiency and extend the life of your equipment.
Stick around—by the end of this guide, you’ll never confuse Extrusion Mold with Extrusion Die again. Instead, you’ll gain insider knowledge that helps you troubleshoot problems, reduce downtime, and optimize your production.
What Is an Extrusion Mold?
The terms “extrusion mold” and “extrusion die” are often used interchangeably in the manufacturing industry, especially in the context of plastic and metal extrusion. However, a more technical and precise distinction exists, though it’s not always followed in common usage.
An Extrusion Die is the correct and more common technical term for the tool used in the extrusion process. It is the specific part with a shaped opening (the “die”) through which the material is forced to create a continuous, fixed cross-sectional profile.
The term Extrusion Mold can be seen as a broader, less specific term. While it is sometimes used to refer to the same tool, it can also cause confusion because the word “mold” is more closely associated with injection molding.
In injection molding, a material is injected into a closed mold cavity to create a complete, three-dimensional part, which is fundamentally different from the continuous, two-dimensional shaping of extrusion.
In summary, when discussing the extrusion process, “extrusion die” is the most accurate and preferred term. It clearly refers to the tool that shapes a material into a continuous profile, avoiding confusion with other molding processes.
Extrusion Mold vs. Extrusion Die: Core Differences
When it comes to plastics forming, differentiating between anextrusion moldand an extrusion dieis fundamental to understanding the manufacturing process. While both tools fall under the broad category of extrusion tooling, their design, function, and final product are distinctly different.
The Extrusion Mold in Injection Molding
The design of an extrusion mold (specifically, an injection mold) aims to create a complex, three-dimensional shape. Designers must consider factors like parting lines, ejector pin locations, and material shrinkage. Once the extrusion mold is closed, material is injected under high pressure, filling the entire cavity to form a single, finished part.
The design of an extrusion die is entirely different. Its primary goal is to ensure that material flows evenly and smoothly through an opening. Whether it’s a rubber extrusion die, apipe extrusion die, or a profile extrusion die, designers focus on the flow channel extrusion die design to prevent material buildup or uneven flow. This is a continuous forming process.
Maintenance Differences: Polishing vs. Cleaning
Due to their different functions, their maintenance varies. An extrusion die requires regularextrusion die polishing to maintain a smooth internal surface, which is critical for producing high-quality products. The maintenance of an extrusion mold, on the other hand, focuses more on cleaning and lubrication to ensure precise closure of the parting lines and smooth ejection of the part.
Conclusion
In short, an extrusion mold is used to produce discrete, complex 3D parts, while an extrusion dieis used in the extrusion plastic process to create continuous products with a constant cross-section. They are different tools that serve different manufacturing purposes.
In every extrusion plastic process, the extrusion dies determine the shape, performance, and efficiency of the final product. They work with the extrusion crosshead and extrusion toolingto convert raw polymers into reliable components used across industries.
Key industry applications include: Sheet extrusion die – For packaging sheets, construction panels, and films. Pipe extrusion die – For water supply, drainage, and industrial tubing. Rubber extrusion die – For automotive seals, hoses, and gaskets. Profile extrusion die – For doors, windows, trims, and wiring insulation.
A high-quality extrusion die design ensures reduced waste, stable throughput, and consistent product dimensions. To maintain peak performance, extrusion die polishing is crucial, enhancing both surface finish and production efficiency.
Ultimately, extrusion dies are the driving force behind production speed, product consistency, and cost savings in extrusion lines.
Types of Extrusion Dies Explained
Types of Extrusion Dies: A Comprehensive Guide to Extrusion Dies for Every Application
Extrusion dies are at the heart of the extrusion plastic process, and their diverse types reflect the wide-ranging needs of the manufacturing industry. Understanding the different types of extrusion dies is crucial for selecting the right extrusion tooling. This article will detail some of the most common types of extrusion dies and their unique functions.
1. Sheet Extrusion Die A sheet extrusion die is used to produce continuous flat products with a width much larger than their thickness, such as plastic sheets or films. The extrusion die design for this type of extrusion die is aimed at ensuring the material flows uniformly from a wide, flat opening to form a product of consistent thickness. They are fundamental to the packaging, construction, and thermoforming industries.
2. Pipe Extrusion Die A pipe extrusion die is specifically designed to produce circular pipes and tubes of various diameters. Its extrusion die design typically features an annular flow channel, where material flows around a central mandrel to form a hollow, tubular structure. These extrusion dies are widely used in construction, water supply, and drainage systems.
3. Profile Extrusion Die A profile extrusion die has the most complex design, used to produce products with irregular cross-sectional shapes, such as window frames, wire casings, or automotive seals. A well-engineered profile extrusion die can ensure material flows uniformly to complex corners and contours, representing the pinnacle of extrusion die design.
4. Rubber Extrusion Die
A rubber extrusion die is similar to its plastic counterparts, but its extrusion die design must account for the high elasticity and viscosity of rubber. These extrusion dies are used to produce products like automotive weatherstripping, gaskets, and industrial belts. Their manufacturing requires the precise cooperation of the extrusion die head and the extrusion die itself to handle the specific material properties.
Conclusion
Each type of extrusion die serves a specific purpose and is indispensable in its field. Choosing the correct extrusion die is the first step to ensuring production efficiency and product quality. Regular extrusion die polishing further extends their lifespan and maintains their performance.
The Role of Extrusion Die Design and Polishing
From Concept to Perfection: The Synergy of Extrusion Die Design and Polishing
In an efficient extrusion plastic process production line, nothing is more important than the synergy between extrusion die design and extrusion die polishing. These two are complementary, working together to ensure the optimal performance of extrusion dies. This article will explore how these two crucial steps collaborate to create perfect results for the extrusion tooling system.
Design is the Foundation, Polishing is the Refinement
First, a successful product requires a superb extrusion die design. Designers need to consider material flow characteristics and the final product’s geometry to create an extrusion die with flow channels that guide the material smoothly. For example, a pipe extrusion die, a sheet extrusion die, or a profile extrusion die all have their unique design challenges.
However, even the most perfect design cannot withstand the minor wear and tear of the production process. This is where extrusion die polishing comes into play. It takes the precision of the design into real-world production, removing any minor imperfections that could affect the product’s surface quality.
The Relationship Between Polishing and the Extrusion Die Head
Extrusion die polishing doesn’t just affect the die itself; it also impacts the performance of the entire extrusion die head. A smooth extrusion die reduces flow resistance, allowing the extrusion die head to work efficiently at a lower pressure. This not only saves energy but also reduces equipment wear. For applications like a rubber extrusion die, where surface finish is critical, the role of polishing is especially vital.
Conclusion
Extrusion diedesign is the blueprint for achieving a product’s geometric precision, and extrusion die polishing is the tool that turns this blueprint into a perfect reality. The seamless combination of these two steps is the secret to ensuring that extrusion dies consistently deliver high-quality products. Neglecting either one can compromise the efficiency of the entire extrusion plastic process and the quality of the final product.
Conclusion: Choosing Between Extrusion Mold and Die
Spider Extrusion: The Ultimate Guide to Extrusion Mold vs. Extrusion Die
As experts in the field of extrusion tooling, Spider Extrusion is often asked a core question: should my project use an extrusion mold or extrusion dies? This ultimate guide will clarify both concepts and provide a clear decision-making framework for you.
Understanding the Core Difference
An extrusion mold(typically an injection mold) is designed for batch production of discrete, complex, and individual parts. It is a discontinuous process, with each cycle producing a single, complete product.
In contrast, extrusion dies are used for continuous production. They are key to the extrusion plastic process, continuously shaping material into a product with a constant cross-section. The extrusion die portfolio at Spider Extrusion includes: Profile extrusion die Pipe extrusion die Sheet extrusion die Rubber extrusion die
No matter which extrusion tooling you choose, the extrusion die design is the foundation for success. Spider Extrusion engineers focus on optimizing flow channels to ensure material flows smoothly between the extrusion die head and the die.
Furthermore, extrusion die polishing is a crucial service we provide to our extrusion dies customers. This maintenance step extends the lifespan of the extrusion dies and ensures products maintain a consistently high surface finish.
Final Conclusion
Your product’s characteristics will be the final deciding factor. If your product needs a complex, single shape, choose an extrusion mold.
If it needs a simple, constant cross-section and is produced continuously, then extrusion dies are the correct choice.
Spider ExtrusionContact Us will be your reliable partner on your extrusion plastic process journey, providing you with the highest quality extrusion tooling.
Other blog posts
SPiDER EXTRUSION Joins HANNOVER MESSE 2025 for the First Time
SPiDER EXTRUSION Representing at HANNOVER MESSE 2025 …
